72V25A battery charger for golf cart
72V25A
1003 visits
Typical output: 72V25A battery charger
Realize fully automatic 4-stage charging process through MCU controller
4 LEDs indicate battery capacity between 25% and 100%
Global communication input 100V-240V
Charging stage: low current charging; Constant current charging; constant voltage charging
Technical indicators
| Rated input voltage: 200Vac-240Vac |
| Input Frequency: 47-63Hz |
| Input current: 13MAX |
| Power Factor: ≥ 0.95 |
| Output Voltage: 12-90V |
| Output Curren: 0.1-80A |
| Full Load Efficiency: ≥ 92 Input 230Vac @ Full Load |
| Operating temperature: -20 ℃ to 40 ℃ |
| Storage Temperature: -40 ℃~85 ℃ |

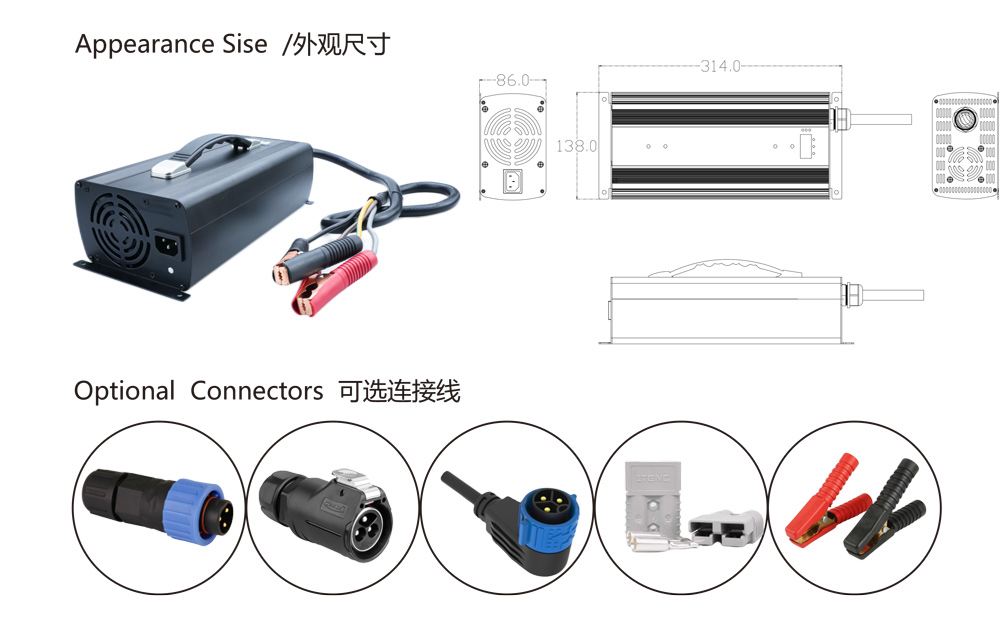

| Product size Dimensuons (mm): 314 * 138 * 86 |
| Net weight of product: 3.5Kg |
Protection function
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
Specification and model
| Lithium iron/LiFePO4 | 29.2V70A | 43.8V47 A | 58.4V35A | 73V28A | 87.6V25A |
| Triple/lithium battery | 29.4V70A | 42V50A | 54.6V35A | 71.4V28A | 84V25A |
| Lead acid/Lead acid | 24V70A | 36V50A | 48V35A | 60V28A | 72V25A |
